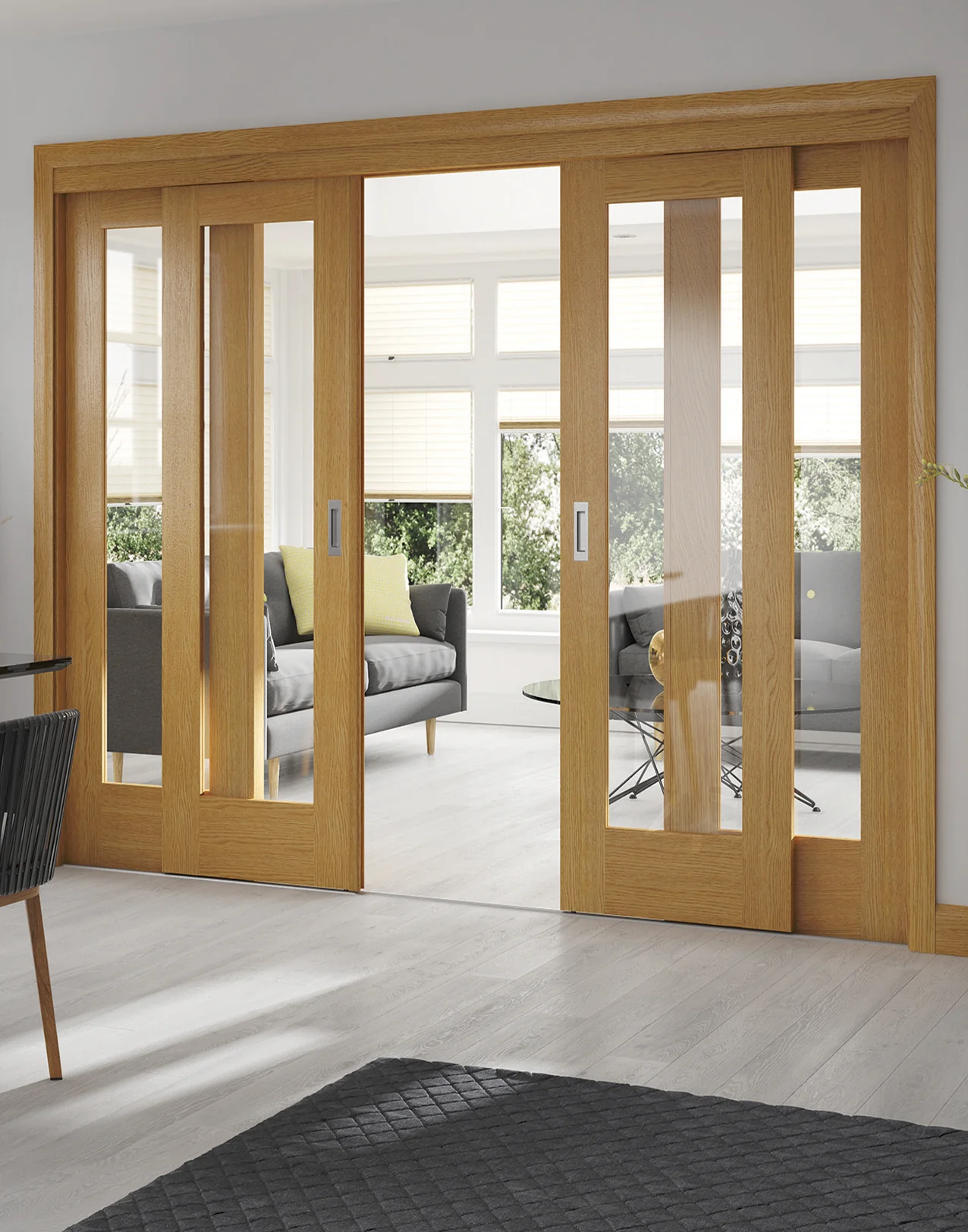

XL Joinery Oak Easi-Slide System
The Easi-Slide system offers a neat solution for a room divider. Various configurations can be used to fit many different apertures making this a very flexible option. The doors are designed to slide as opposed to fold thus creating less obstructions in adjoining rooms. Available with any standard internal oak door from the XL range thus allowing standard doors and the Easi-Slide to sit side by side in a property. The Easi-Slide comes with a frame, all sliding door hardware (excluding handle) and a pair maker.
The Easi-Slide Frame is a multi-purpose product that is intended to be adapted by the installer to fit a multiple range of sizes and opening configurations: It is the responsibility of the installer to ensure that the required dimensions and assembly are suitable for the products intended use. Please ensure that the system is dry assembled before any openings are cut in order to ensure the correct size is cut into the wall.
Doors not included
General Information:
| Brand | XL Joinery |
| Model Code | OSLIDEF |
Door Information:
| Type |
Room Dividers |
| Colour | Oak |
| Finish | Un-Finished |
| Construction | Solid Core |
| Glazing |
N/A |
| Lipping | N/A |
| Matching Door | N/A |
| Matching Solid Door | N/A |
| Available Sizes (inch.) | Frame dimensions 2017mm x 3500mm, supplied |
| Recommended Hardware | Pair of Handles per door leaf (Pack includes 2x frame jambs/legs, 1x frame head, 2x central mullions, hardware and pair maker) |
| Guarantee | 5 years |
- Engineered Oak door frame system and sliding door hardware kit, suitable for 35mm thick doors only. DOORS NOT INCLUDED.
- Overall maximum dimensions of the frame are 2090x3500mm. Pack includes frame, sliding hardware (except handles) and a Pair-Maker
- Frames will need to be cut down on the height as well as to suit the desired overall width, as allowances have been made for different floor coverings
- Frame jamb/legs and frame head are 20mm thick, central mullions are 20mm thickness and the pair-maker is 10mm thick - please make allowances for the thickness of the frame, pair-maker and gapping in your calculations.
- Some possible configuration suggestions are found in the image box above left.
- Suitable for use with XL Joinery Oak Doors with non-raised mouldings
Original: $909.42
-65%$909.42
$318.30
Description
The Easi-Slide system offers a neat solution for a room divider. Various configurations can be used to fit many different apertures making this a very flexible option. The doors are designed to slide as opposed to fold thus creating less obstructions in adjoining rooms. Available with any standard internal oak door from the XL range thus allowing standard doors and the Easi-Slide to sit side by side in a property. The Easi-Slide comes with a frame, all sliding door hardware (excluding handle) and a pair maker.
The Easi-Slide Frame is a multi-purpose product that is intended to be adapted by the installer to fit a multiple range of sizes and opening configurations: It is the responsibility of the installer to ensure that the required dimensions and assembly are suitable for the products intended use. Please ensure that the system is dry assembled before any openings are cut in order to ensure the correct size is cut into the wall.
Doors not included
General Information:
| Brand | XL Joinery |
| Model Code | OSLIDEF |
Door Information:
| Type |
Room Dividers |
| Colour | Oak |
| Finish | Un-Finished |
| Construction | Solid Core |
| Glazing |
N/A |
| Lipping | N/A |
| Matching Door | N/A |
| Matching Solid Door | N/A |
| Available Sizes (inch.) | Frame dimensions 2017mm x 3500mm, supplied |
| Recommended Hardware | Pair of Handles per door leaf (Pack includes 2x frame jambs/legs, 1x frame head, 2x central mullions, hardware and pair maker) |
| Guarantee | 5 years |
- Engineered Oak door frame system and sliding door hardware kit, suitable for 35mm thick doors only. DOORS NOT INCLUDED.
- Overall maximum dimensions of the frame are 2090x3500mm. Pack includes frame, sliding hardware (except handles) and a Pair-Maker
- Frames will need to be cut down on the height as well as to suit the desired overall width, as allowances have been made for different floor coverings
- Frame jamb/legs and frame head are 20mm thick, central mullions are 20mm thickness and the pair-maker is 10mm thick - please make allowances for the thickness of the frame, pair-maker and gapping in your calculations.
- Some possible configuration suggestions are found in the image box above left.
- Suitable for use with XL Joinery Oak Doors with non-raised mouldings
