Atlantic Ermetika xREVERx Flush Hidden Door System with White Primed Door - Satin Chrome Latch/Bathroom Accessories
Atlantic Ermetika xREVERx Flush Hidden Door System with White Primed Door - Satin Chrome Latch/Bathroom Accessories

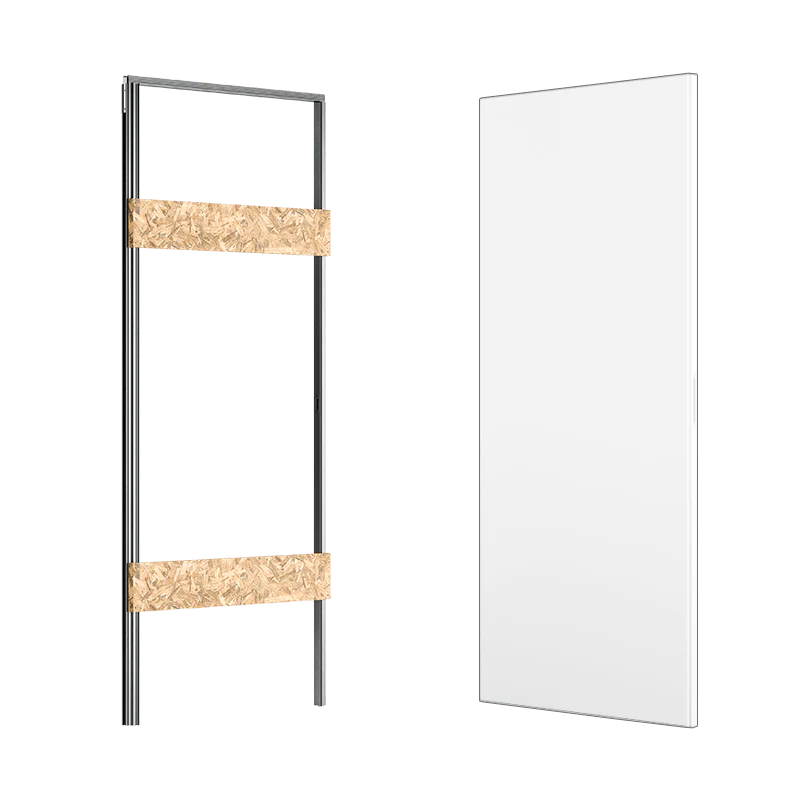

xREVERx is a flush reversible hinged door system that combines versatility and sleek aesthetics. It includes both door and frame, and can be fully customised to meet your construction needs. The system is reversible, allowing the door to open from the left or right, with a push or pull motion, simply by rotating the frame. It is available in standard dimensions and can be installed in both plastered and plasterboard walls. Free from visible jambs and architraves, xREVERx offers a minimalist look and maximum freedom in decorative choices - ideal for modern interiors that value both function and design.
10-year mechanical guarantee subject to Atlantic UK Terms & Conditions.
Features:
- Minimal profile allows for plaster finish right up to the edge of the door, creating a frameless architrave-free appearance.
- Push, pull, left or right. The reversible system offers a single solution for all applications
- Can be fitted to timber, metal or masonry walls.
- Door is supplied pre-finished in white B011 – ready to paint or wallpaper.
- Soundproof 25 dB acoustic insulation performance.
Product Information:
-
2-door cores types:
- Honeycomb Core Door - 1964mm height, 44mm thickness, option of 600mm, 700mm, 800mm, or 900mm width
- Chipboard Core Door- 2024mm height, 44mm thickness, option of 600mm, 700mm, 800mm, or 900mm width
- Door has predrilled lock cut out, and frame comes with strike plate and hinges cut out (cut out for 50mm backset lock)
- Faces of the door are totally plain – no cut outs. Customer cuts out for the handles on site.
- The door comes supplied with the lock, strike plate and hinges (3x Anselmi Concealed Hinges for 40kg door, 1x AGB Polaris 2XT Bathroom Lock in Satin Chrome with strike plate.)
- Upgrade pack options available for Bathroom Lock, Euro Lock and Key Sashlock. Antique Brass and Bronze finish locks also available with aluminium strike plates.
Dimensions:
- Length: 2280mm, Depth: 80mm.
| Passage Size | Door Size | Overall Kit Size |
|---|---|---|
| 600 × 1970 mm | 613 x 1964 mm | 690 x 2000 mm |
| 700 × 1970 mm | 713 x 1964 mm | 790 x 2000 mm |
| 800 × 1970 mm | 813 x 1964 mm | 890 x 2000 mm |
| 900 × 1970 mm | 913 x 1964 mm | 990 x 2000 mm |
| 600 × 2030 mm | 613 x 2024 mm | 690 x 2060 mm |
| 700 × 2030 mm | 713 x 2024 mm | 790 x 2060 mm |
| 800 × 2030 mm | 813 x 2024 mm | 890 x 2060 mm |
| 900 × 2030 mm | 913 x 2024 mm | 990 x 2060 mm |
Useful Links:
- Fitting Instructions
- Data Sheet
- Fitting Video
Original: $718.39
-65%$718.39
$251.44
